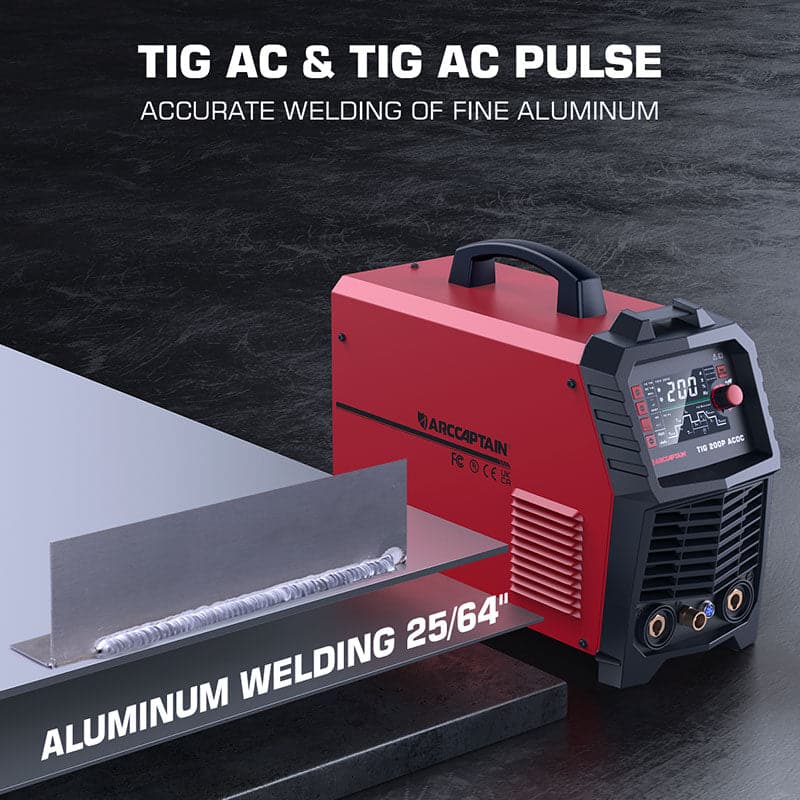

Used Multi Process Pulse TIG Aluminum Welder AC DC TIG200P

This used machine has not been used by anyone, guaranteed to be 80% new, but has some minor scratches. If you don't mind this, this AC DC TIG welder would be a great choice for you, offered at a very affordable price.

Some minor scratches on the screen and traces of foam on the power cord.

For sale: Machines in 100% quality condition. Minor scratches due to transportation. Quality warranty period: 2 years.

Warm suggestion: Before using the AC DC TIG200P, it's recommended to adjust your machine using test parameters.

Pre-flow time: 0.5s
Starting current: 50A
Rising time: 0s
Welding current: 100A
Fall time: 0s
Ending current: 20A
AC frequency: 100HZ
Cleaning width: 30%
Welding material: 5mm aluminum plate
Tungsten electrode diameter: 2.4mm

Technical Parameters

The ARCCAPTAIN TIG200P AC/DC Pulse Tig Aluminum Welder offers excellent welding performance and versatility when working with aluminum. Thanks to its AC/DC capabilities, you'll have access to adjustable pulse characteristics and a wide range of welding modes. This creates an ideal environment for welding aluminum, making it an ideal choice for those working with this metal.

Project Name	Unit	Value
Power voltage	VAC	AC110V±15% AC220V±15%
Input frequency	Hz	50
Rated input current	A	33@TIG 35@MMA
Capacity of power supply	KVA	6.0@TIG 7.5@MMA
Output current range (TIG)	A	10~120(110 v) 10~200 (220v)
Output current range (MMA)	A	10~110(110v) 10~160(220v)
Arc force range	A	0~40
Hot start current range	A	0~80
No-load voltage	V	60
Rated working voltage	V	18@TIG 26.4@MMA
AC output frequency	Hz	20~250
AC balance	%	20~60
Background level	A	10~200
Pulse frequency	Hz	0.5~200 (DC)   0.5~25(AC)
Pulse duty factor	%	5~95
Pre-flow time	S	0~5
Post-flow time	S	0~15
Rising time	S	0~15
Fall time	S	0~15
Remote control	-	Yes
Arc start mode	-	HF arc starter
Efficiency (%)	%	80
Duty cycle (%)	%	TIG: 200@25% - MMA: 160@25%
Power factor	-	0.70
Type of cooling	-	Air cooled
Working temperature range	°C	—10~+40
Storage temperature range	°C	—25~+55
Protection class	-	IP21S
Insulation class	-	B
