ARCCAPTAIN High Frequency Air Cooled TIG200 DC TIG Torch 13-FT 150 Amps Gun

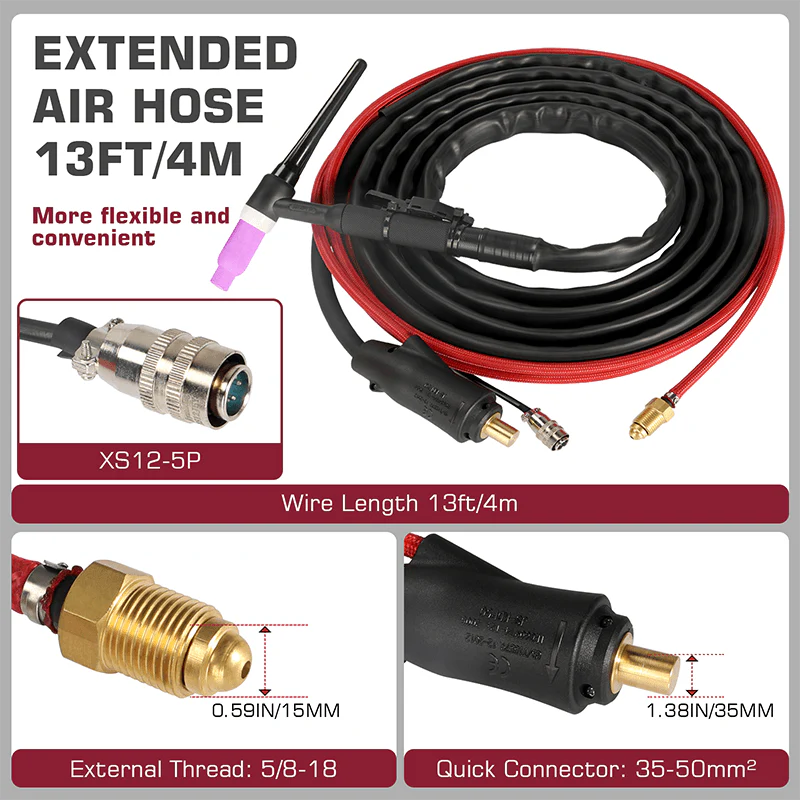

• Extra-Long 13-Foot Air Hose: Instead of lugging the Argon welding cylinder tank all over the place, the ARCCAPTAIN TIG Torch comes with an extra-long 13-foot air hose and cables, providing tremendous convenience for distant welding tasks. Furthermore, these cables are constructed from robust rubber hose with nylon over-braid, making them super lightweight. This innovative design allows the TIG welding torch to remain flexible in any situation.
• Durable and Built to Last: The HF TIG welding gun is crafted from a one-piece EPDM rubber power cable hose and a nylon cable cover, ensuring it's free from leaks, blockages, or cracks. The connections are sealed tightly, offering exceptional heat and abrasion resistance for an extended service life.

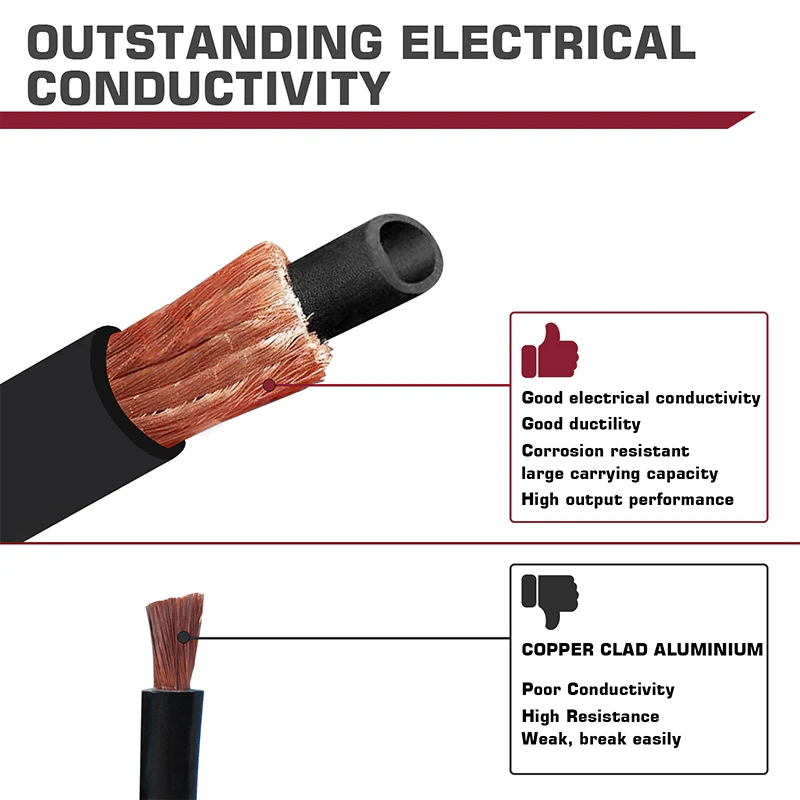

• Exceptional Performance: Featuring 6mm² high-purity copper wires intricately woven into the cables, these low-resistance conductors have a substantial carrying capacity. The premium nylon material ensures excellent heat dispersion, even during prolonged usage with high amperage.
• Smart and Ergonomic Design: The super-light high-frequency TIG Torch boasts a ribbed, ergonomic handle that provides a strong grip, comfortable handling, and relieves operator fatigue, simplifying welding tasks.

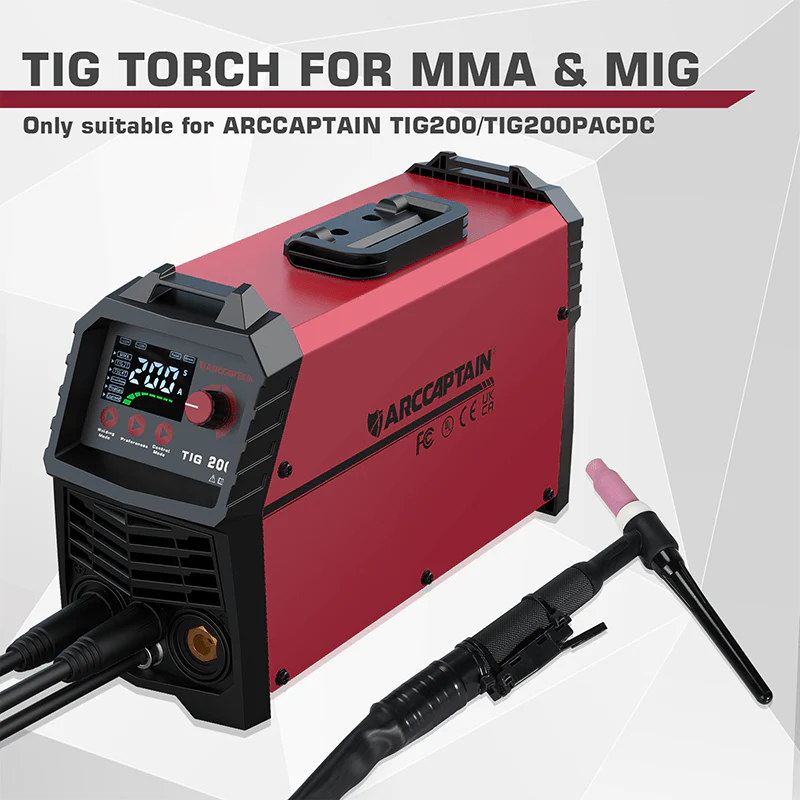

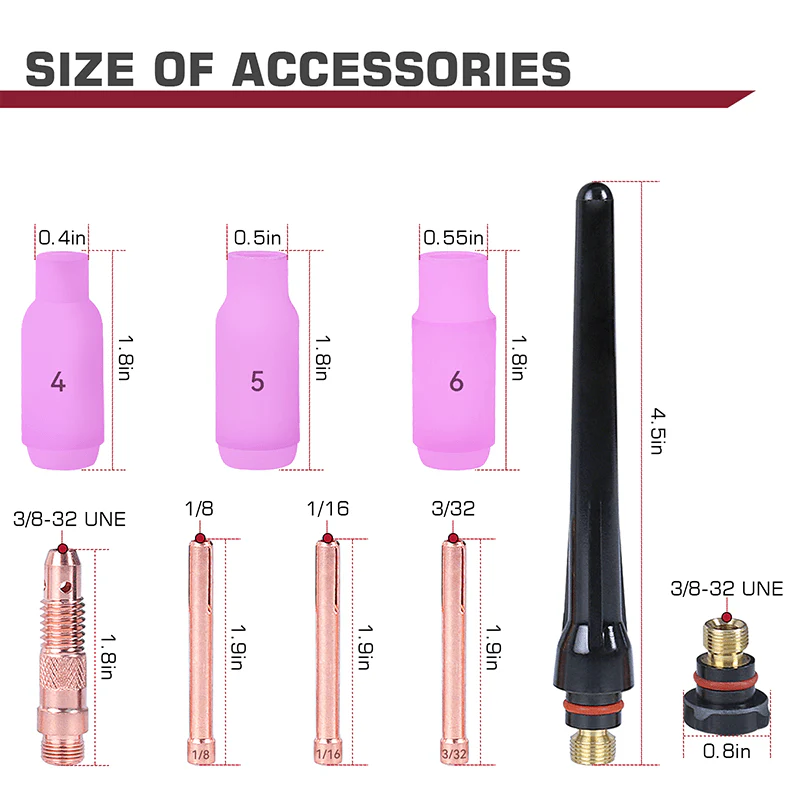

• Compatibility: The WP-17 150-Amp Argon TIG Welding Torch is exclusively designed for use with ARCCAPTAIN TIG200 welding machine. It features a European Connector for cables sized between 35-50mm², a red gas line connection with a 5/8"-18 RH thread, and an XS12 5-Pin air socket. It is suitable for tungsten electrodes ranging from 0.04" to 1/8".

What is the air cooled TIG torch

An air-cooled TIG torch is a type of welding torch used in Tungsten Inert Gas (TIG) welding that relies on ambient air for cooling, as opposed to water-cooled TIG torches that use liquid coolant for heat dissipation. Air-cooled TIG torches are more common and straightforward to use, but they are generally suitable for lower amperage applications due to their limited cooling capacity.

Key features and characteristics of air-cooled TIG torches include:

1. Cooling Method: These torches rely on the surrounding air to dissipate heat generated during welding. They typically have internal air channels and vents to facilitate cooling.

2. Simplicity: Air-cooled TIG torches are easier to set up and maintain compared to their water-cooled counterparts. There is no need for a separate coolant system, which simplifies the welding equipment.

3. Portability: Due to their simplicity, air-cooled TIG torches are more portable and lightweight. They are often preferred for field welding or when mobility is a consideration.

4. Amperage Rating: While suitable for many welding applications, air-cooled torches may have limitations when it comes to handling very high amperage levels. Water-cooled torches are typically chosen for heavy-duty, high-amperage welding tasks.

5. Duty Cycle: Air-cooled TIG torches have a duty cycle, which indicates the percentage of time they can operate continuously at a given amperage without overheating. The duty cycle may vary depending on the torch's design and quality.

6. Welding Applications: Air-cooled TIG torches are commonly used for welding thin to medium-thickness materials in applications such as automotive repair, sheet metal fabrication, and general welding tasks.

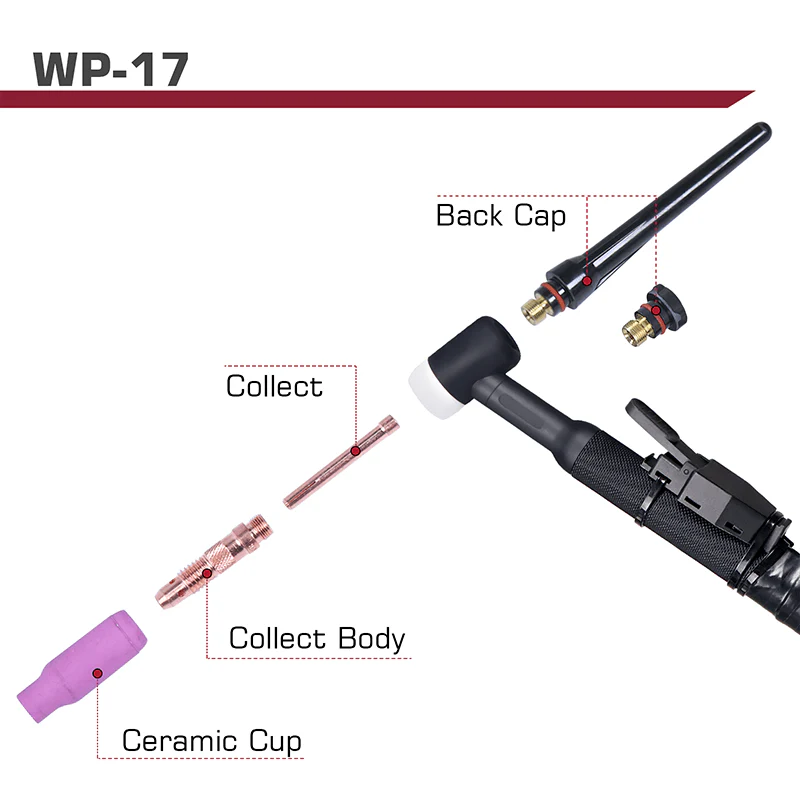

7. Consumables: These torches use various consumables like Tungsten electrodes, collets, and cups, which can be specific to the torch model and should be compatible.

When selecting a TIG torch for your welding needs, it's essential to consider the materials you'll be working with, the required amperage, and the duty cycle. Air-cooled TIG torches are suitable for many welding situations, but for high-amperage or continuous welding, a water-cooled TIG torch may be a better choice to ensure efficient heat dissipation and prevent overheating.
