Arccaptain WP-26 150A Air-Cooled TIG Welding Torch with 13FT Cable

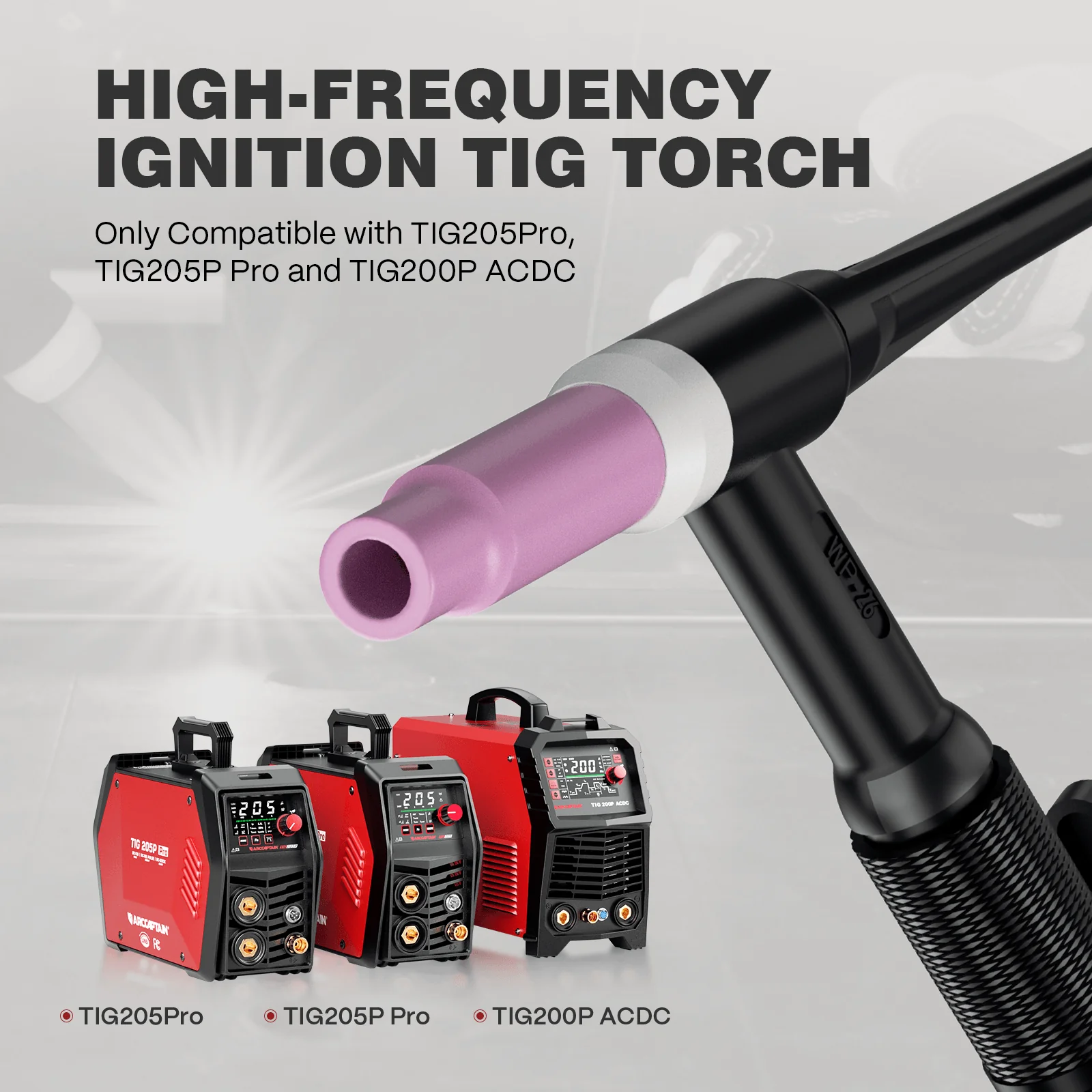

Wide Compatibility: The WP-26 150A Argon TIG Welding Torch is compatible with ARCCAPTAIN TIG205 Pro, TIG205P Pro, and TIG200P ACDC welders.

Connector: European 35–50mm²

Gas Line: 5/8"-18 RH

Air Socket: XS12 5-Pin

Tungsten Electrode Size: 0.04"–1/8"

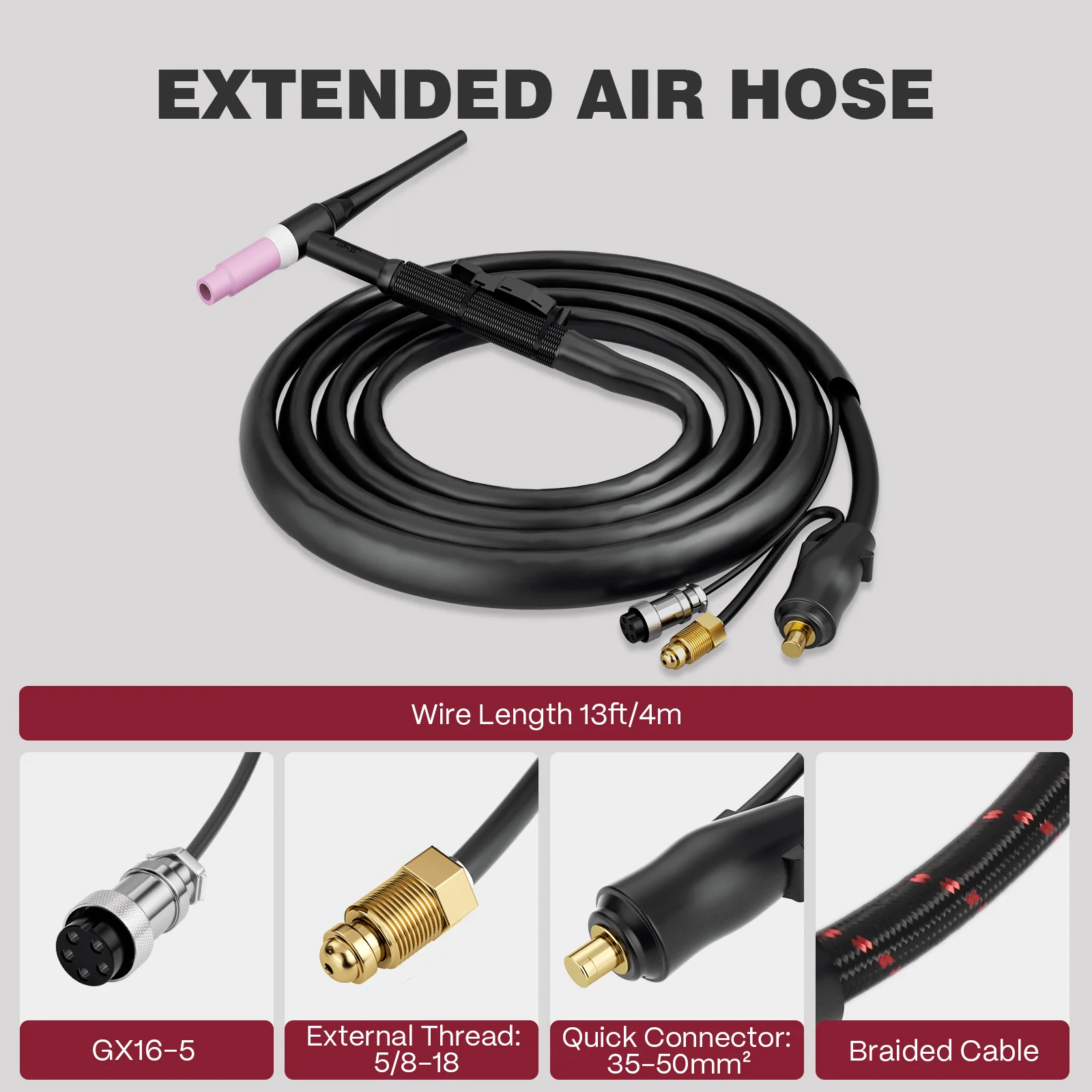

Extra-Long 13FT Air Hose for Greater Flexibility: No need to move your Argon tank around anymore. The ARCCAPTAIN TIG Torch comes with an extra-long 13FT air hose and cables, providing exceptional convenience for distance welding. The durable rubber hose with a nylon over-braid is lightweight yet flexible, ensuring smooth operation in any working condition.

Built to Last: Constructed from a one-piece EPDM rubber power cable hose with a nylon cable cover, this HF TIG torch is designed for durability and reliability — no leaks, no clogs, no cracks. It offers excellent heat and abrasion resistance, ensuring a long service life even in demanding environments.

Superior Performance: Features 6mm² high-purity multi-strand copper wire for low resistance and high current capacity. The premium nylon material enhances heat dissipation, maintaining stable performance during extended high-amperage welding.

Ergonomic & Lightweight Design: The super-light high-frequency TIG torch is equipped with a ribbed, ergonomic handle that provides a secure grip, reduces operator fatigue, and delivers optimal comfort for long welding sessions.

WP-17 vs WP-26 TIG Torch Comparison

Feature	WP-17 TIG Torch	WP-26 TIG Torch
Rated Current	150A (DC) / 120A (AC)	200A (DC) / 150A (AC)
Cooling Type	Air-cooled	Air-cooled
Flexibility	Excellent flexibility for precise welding	Less flexible but more durable under load
Recommended Tungsten Size	0.5–2.4 mm (0.020"–3/32")	1.0–4.0 mm (0.040"–5/32")
Heat Resistance	Moderate heat resistance	Higher heat and duty cycle capacity
Durability	Ideal for light to medium-duty tasks	Built for heavy-duty and industrial applications
Typical Applications	Thin sheet metal, stainless steel, automotive repair, DIY use	Thick steel, continuous welding, industrial fabrication
Consumables Compatibility	Compatible with 17/18/26 series consumables	Compatible with 17/18/26 series consumables



What is the air cooled TIG torch

An air-cooled TIG torch is a type of welding torch used in Tungsten Inert Gas (TIG) welding that relies on ambient air for cooling, as opposed to water-cooled TIG torches that use liquid coolant for heat dissipation. Air-cooled TIG torches are more common and straightforward to use, but they are generally suitable for lower amperage applications due to their limited cooling capacity.

Key features and characteristics of air-cooled TIG torches include:

1. Cooling Method: These torches rely on the surrounding air to dissipate heat generated during welding. They typically have internal air channels and vents to facilitate cooling.

2. Simplicity: Air-cooled TIG torches are easier to set up and maintain compared to their water-cooled counterparts. There is no need for a separate coolant system, which simplifies the welding equipment.

3. Portability: Due to their simplicity, air-cooled TIG torches are more portable and lightweight. They are often preferred for field welding or when mobility is a consideration.

4. Amperage Rating: While suitable for many welding applications, air-cooled torches may have limitations when it comes to handling very high amperage levels. Water-cooled torches are typically chosen for heavy-duty, high-amperage welding tasks.

5. Duty Cycle: Air-cooled TIG torches have a duty cycle, which indicates the percentage of time they can operate continuously at a given amperage without overheating. The duty cycle may vary depending on the torch's design and quality.

6. Welding Applications: Air-cooled TIG torches are commonly used for welding thin to medium-thickness materials in applications such as automotive repair, sheet metal fabrication, and general welding tasks.

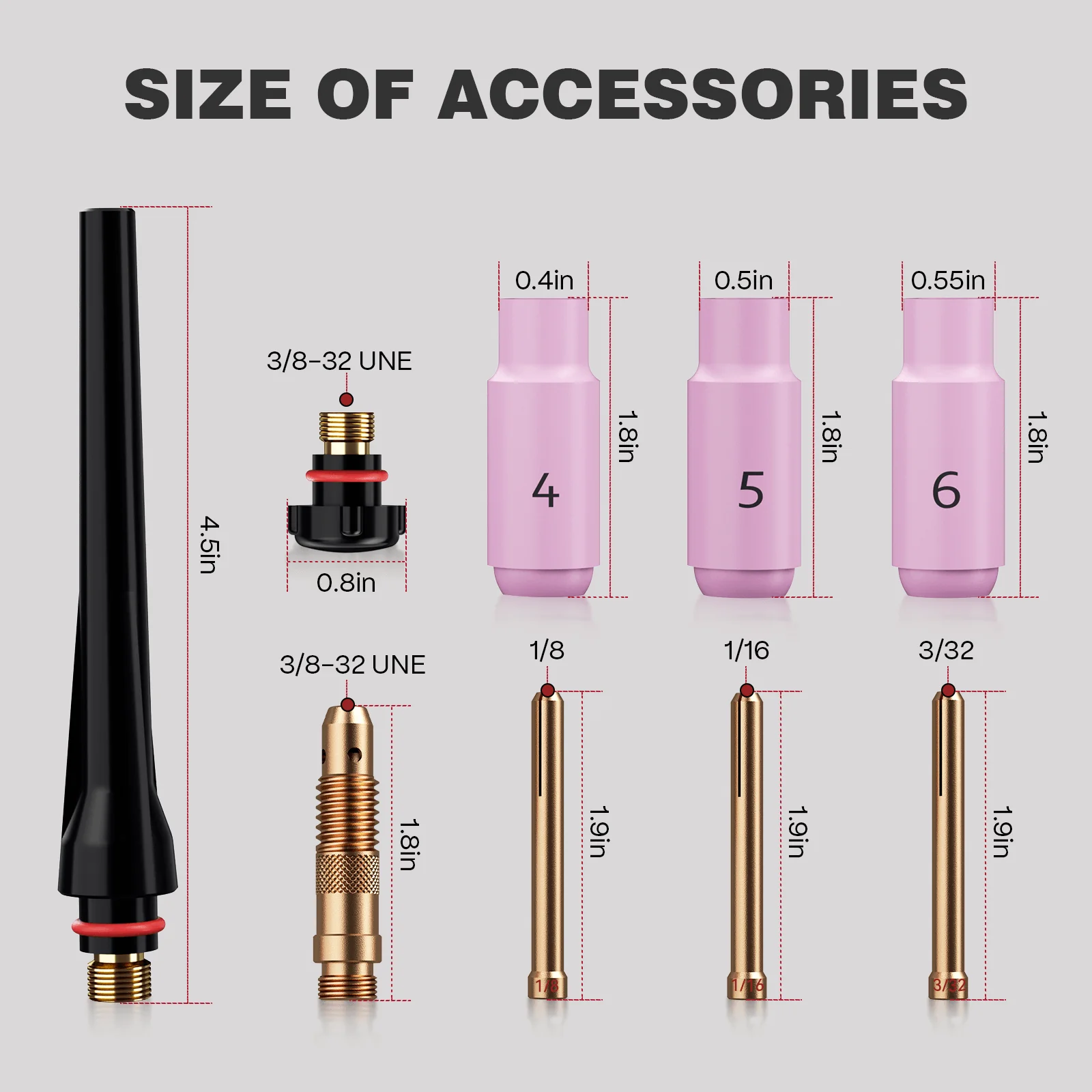

7. Consumables: These torches use various consumables like Tungsten electrodes, collets, and cups, which can be specific to the torch model and should be compatible.

When selecting a TIG torch for your welding needs, it's essential to consider the materials you'll be working with, the required amperage, and the duty cycle. Air-cooled TIG torches are suitable for many welding situations, but for high-amperage or continuous welding, a water-cooled TIG torch may be a better choice to ensure efficient heat dissipation and prevent overheating.
