Used DC TIG Welder HF TIG/Stick Welder TIG200

• High Frequency Arc Starting: Our DC TIG welder TIG200 offers easy arc initiation and reduces tungsten and material consumption. With advanced MCU and IGBT Inverter technology, achieve flawless welds and minimize spatter and post-weld cleanup.

• HF TIG/Stick 2 in 1 Welder: Our versatile welding machine provides up to 200 amps for precise stainless and mild steel welding. It also offers Stick/MMA capability for outdoor work or thicker materials. Perfect for entry-level welders seeking power and ease of use.

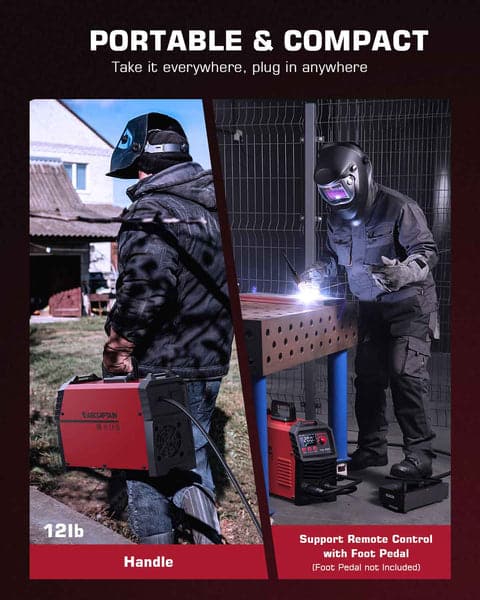

• Portable & Unique LED Display: Weighing less than 12lb, our welder is easily portable with a handle or shoulder strap (included). The large LED screen provides accurate data display, allowing easy reading without removing your helmet.

• Safety & Fan Works as Needed: Our cooling fan system operates only when required, eliminating constant buzzing sounds. With VRD and multiple protection functions, we prioritize customer safety. Personalize your welding experience with Down Slope, Post Gas, and 2T/4T modes.

• Good Quality: Our welder machines undergo rigorous laboratory tests simulating harsh environments, ensuring they meet high standards before leaving our ARCCAPTAIN factory. Trust in our commitment to quality.

Title	ARCCCAPTAIN TIG200 DC TIG Welder
Industries Interests	Aerospace Boat / Yacht Construction Heavy Equipment Manufacturing High Purity Processing Infrastructure Maintenance and Repair - Field Operations Maintenance and Repair - In Plant Manufacturing Railcar Shipbuilding Work / Service Trucks Mechanical Contracting Metal Art / Sculptures
Material Thickness	Steel 0.020 in. (0.5 mm) - 13/64 in. (5mm)
Weldable Metals	Stainless Steel Steel
Input Voltage	110/220/ V
Input Phase	1-Phase
Input Hz	50/60 Hz
Current Type	DC
Max Open Circuit Voltage	48 VDC
Amperage Min	5 A
Amperage Max	200 A/220v 140 A/ 110V
Portability	Handle(s) Strap



ARCCAPTAIN Powerful and Easy-to-handle High Frenquency 200Amp TIG Welding Machine

• Versatility: Runs DC TIG welding and Stick Welding.
• High-Frequency Arc Starting: Non-contact arc initiation that reduces material consumption.
• MCU Digital Control: Get precise welding with enough power, ensuring welding smooth and stable performance.
• Advanced IGBT inverter: Power with modulation IGBT technology design gives this machine the most reliability.

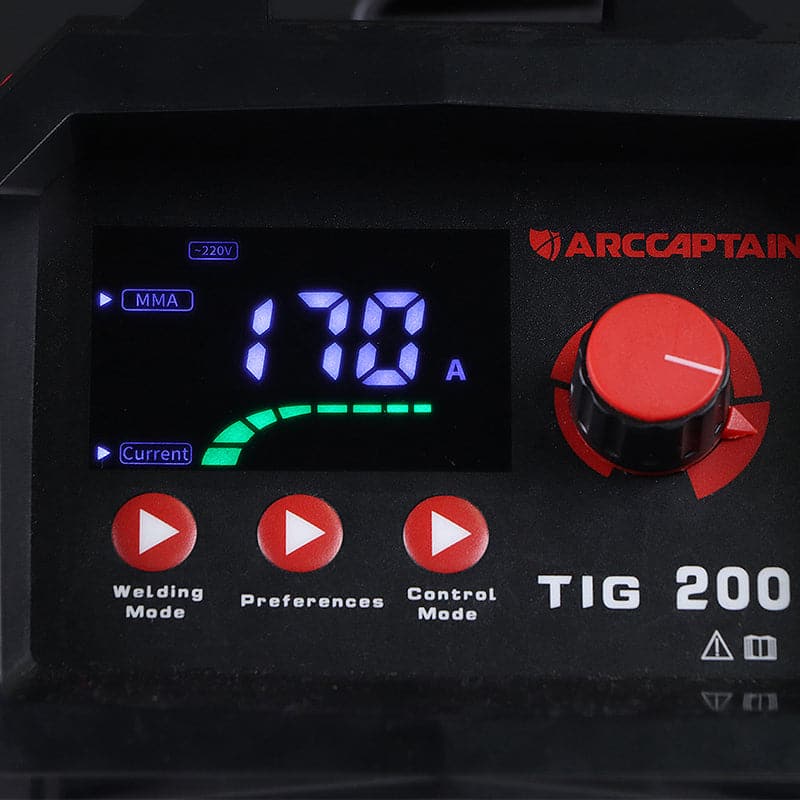

• Large LED Display: Unique LED screen design, provides precise data display and makes you read easier and clearer.
• Lightweight and Portable: Only 12 pounds allows the end user to easily move by the handle or should strap.
• Remote Control Function: Support TIG welding with Foot pedal as your needs ( Foot pedal not included).
• Pre-flow and Post flow: Help you have a good welding experience and improve welding efficiency.
• Easy to Use: It's not only for hobbyists or beginners but also right for professional work.

High Frenquency Arc Starting

High frequency TIG start allows arc success rate of the TIG is almost 100% with providing an easy arc start, stable current, good shaping, then ensure clean and beautiful welds.

Fan on Demand & Energy-saving

• Smart cooling fan system runs only when it's needed so no constant buzzing sounds,also it's energy-saving.

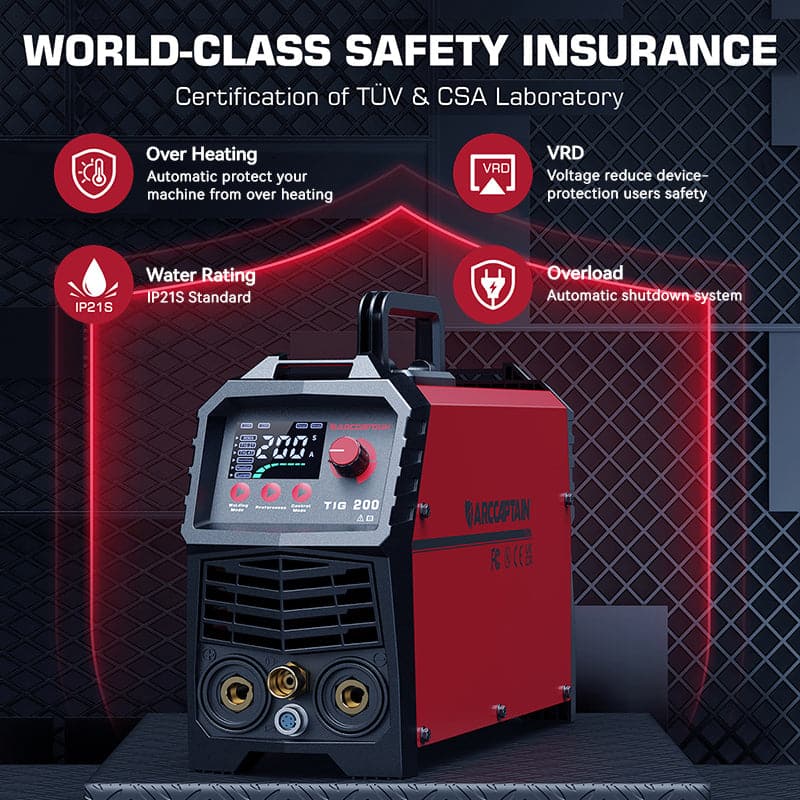

• Safety: Automatic protection function for over-current, over-voltage and Over-heating, over Load Protection.

Suitable for Various Thinkness of Metal

• Suitable for stainless steel, alloy steel, low carbon steel, copper, iron, etc.
• TIG: Can weld up stainless steel to 13/64 inch (5mm).
• STICK: Can weld up to 13/64 inch(5mm) plate.

High performance Dual Voltage DC TIG Welder Machine

• Dual Voltage 110V/220V: Suitable for various working environments.
• 60% Rated Duty Cycle: Ensure long-time welding.
• DC TIG welding 15-200 amps is very suitable for both thin and thick workpieces.
• Superior MMA Welding features hot start, arc force, anti-stick.
• 2T/4T welding match your different needs,4T is suitable for continuous long-term welding.
• Suitable wide range of tasks: can weld steel/stainless steel/carbon/iron.
• Easy arc ignition, litter spattering, stable current and good shaping.
• Strict Quality Control : Each of our machines passes laboratory quality tests. The laboratory is Certified as an audited lab by TÜV Rheinland.

Do your Tig200 machines support foot pedals?

Yes, Foot pedal with 10k resistance. 5-pin aviation plug, connect to Place1, 2, 5

10K ohm 5-pin aviation plug, The right position： 5=vcc 1=wiper 2=gnd and 3/4=switch
