AC DC TIG200P 230V Multi Process Pulse TIG Aluminum Welder EU

arm suggestion: Before using the AC DC TIG200P, it's recommended to adjust your machine using test parameters.

Pre-flow time: 0.5s
Starting current: 50A
Rising time: 0s
Welding current: 100A
Fall time: 0s
Ending current: 20A
AC frequency: 100HZ
Cleaning width: 30%
Welding material: 5mm aluminum plate
Tungsten electrode diameter: 2.4mm

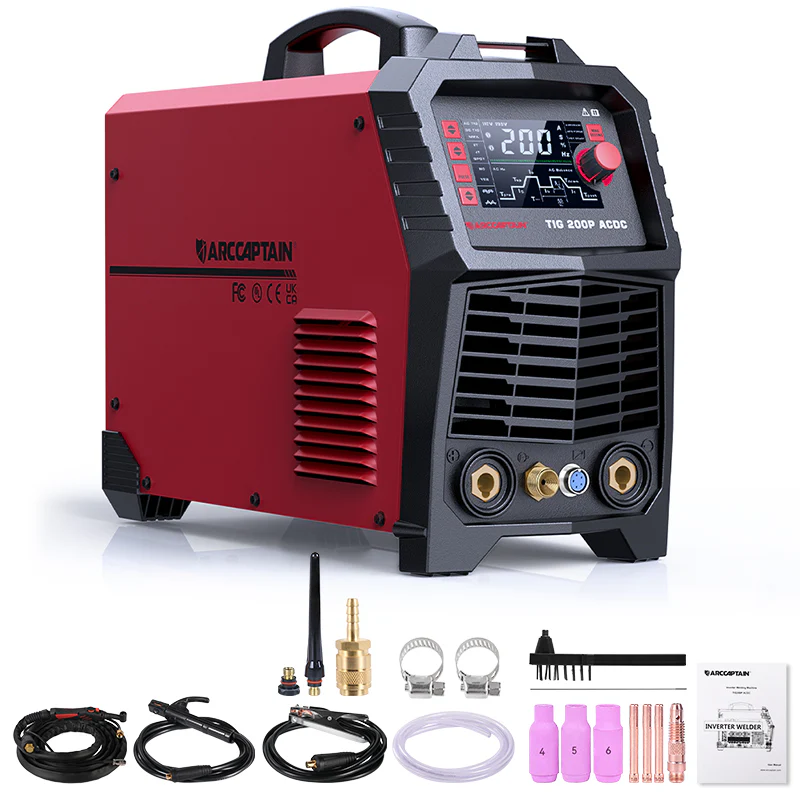

What is in box：

EU Version TIG200P  ( Gas regulator Excluded）

• 1X TIG Torch
• 1X Ground Clamp
• 1X Accessories
• 1x Air Hose
• 1X Owner’s Manual

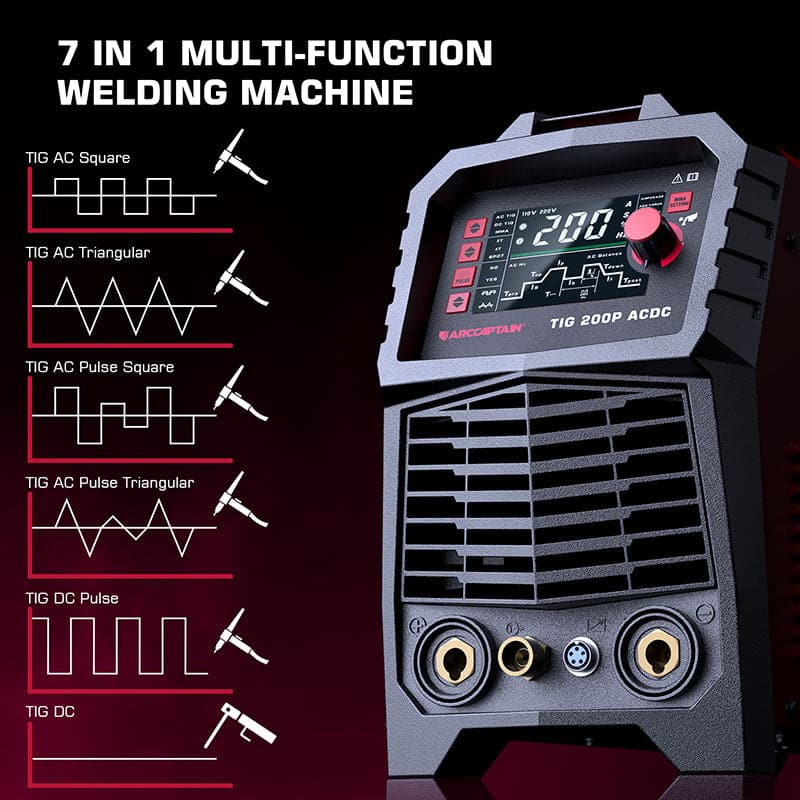

The AC/DC TIG 200P welder is a powerful aluminum TIG welding machine that offers welding with TIG AC Square/Triangular/Pulse Square/Pulse Triangular/DC Pulse/DC/STICK methods. It can be used for welding various metals, including aluminum, steel, stainless steel, carbon steel, and copper.

The patented DASH-ARC technology improves arc striking speed, welding efficiency, and results, while the pulse, square, and triangular waveform functions prevent material burning, minimize distortion, and improve bead appearance. The digital control system makes the machine reliable and stable, and the large LED display allows for easy parameter adjustment.

Who are using AC/DC TIG200P

The TIG200P AC DC Pulse Tig Aluminum Welder is lightweight and compact at only 12 kg (26.5lb). Plus, included safety features like VRD, over-current, over-voltage, overload, and over-temperature protection make it user-friendly and reliable.

Moreover, you can choose between 2T/4T/Spot welding TIG torch control and foot pedal remote control methods for a more versatile welding experience. This is a great choice for pro welders!

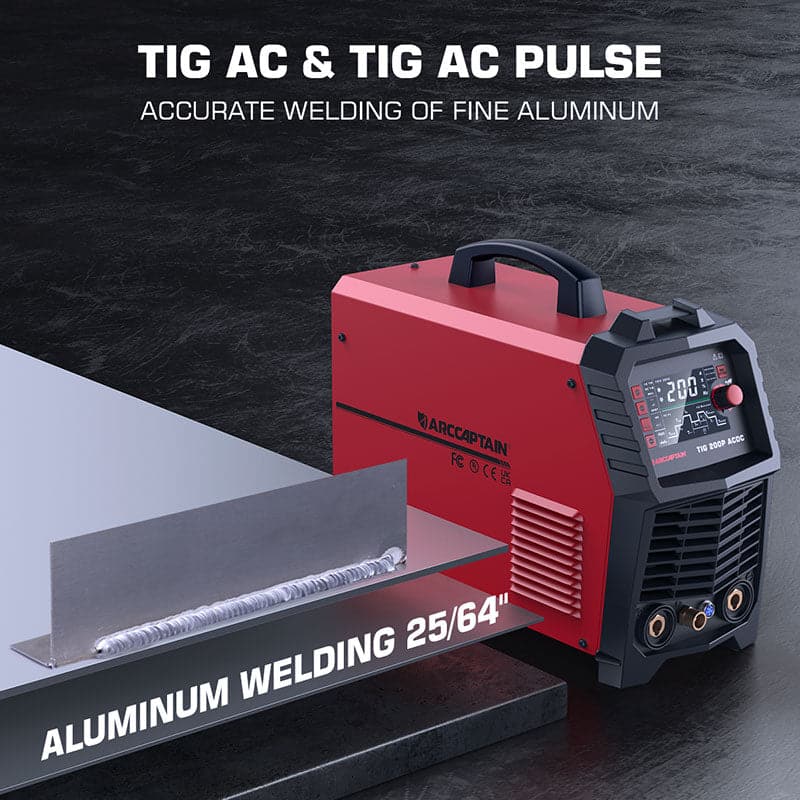

• Powerful TIG Welder AC/DC: Welds TIG AC Square/Triangular/Pulse Square/Triangular, TIG DC Pulse/DC, and Stick up to 160A with MMA welding. Ideal for finesse welding aluminum alloys, magnesium, steel, stainless steel, carbon steel, copper, etc.
• PATENTED DASH-ARC TECHNOLOGY: The unique DASH-ARC technology patent improve arc striking speed from 200ms to 40ms, 99.99% arc striking success rate, which improve welding efficiency and get better welding results. Digital constant current regulation technology ensures low noise and high stable arc quality in the full specification. it also protect tungsten against damage.

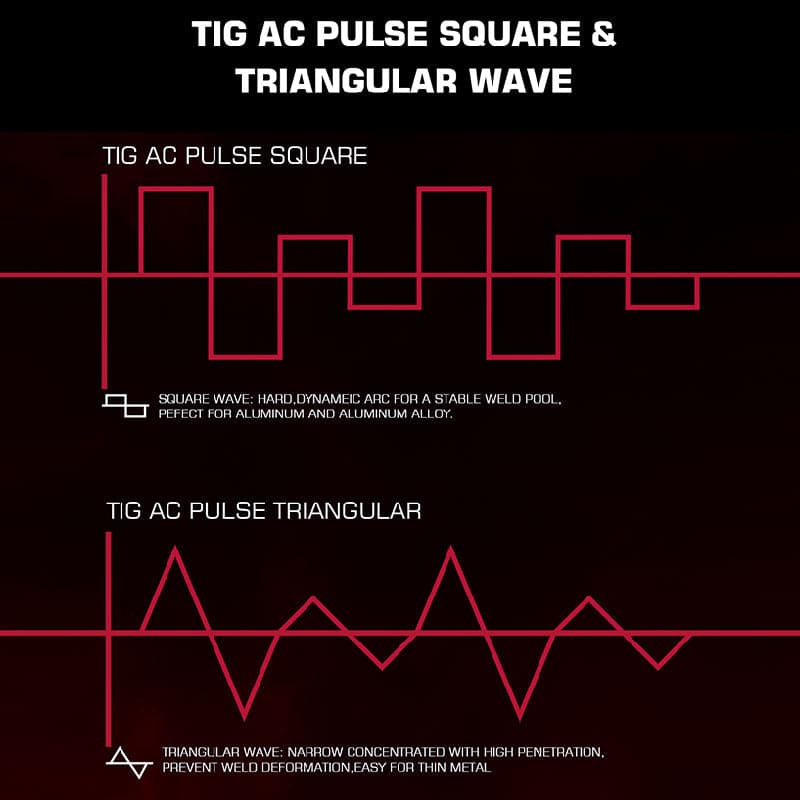

• Equipped with pulse, square, & triangular waveforms, this ac/dc TIG welder prevents burning & distortion, moderates bead appearance, & reduces heat input. Square wave quickly switches polarity, providing dynamic arc & oxide film cleaning for precise, stable aluminum welding. No matter your skill level, you'll be satisfied.
• This ARCCAPTAIN TIG200P multi-process pulse Tig welder features a reliable and stable MCU Digital Control System with adjustable digital welding parameters, such as Pre-flow, Initial current, Up-slope, Peak current, Base current, Down-slope, Crater current, and Post-flow. Plus, it has 2T/4T/Spot welding TIG torch control and foot pedal remote control (not included) for enhanced welding performance.

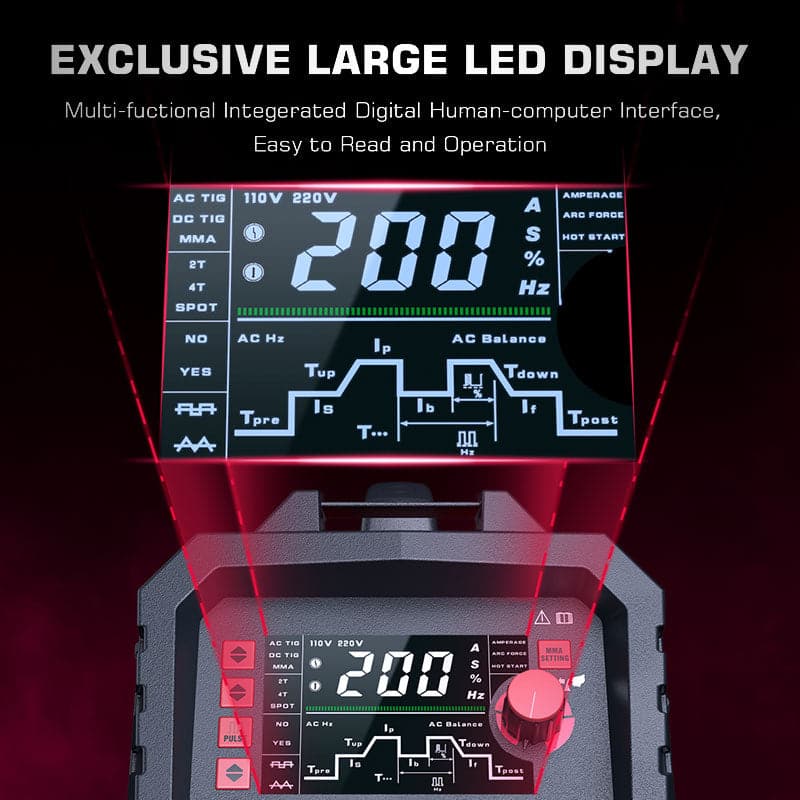

• LARGE LED DISPLAY & COMPACT: The user-friendly and simple interface enables the operators to set it easily and efficient, data and dynamic output current will be display immediately .Spike withstanding IGBT save space and weight, it’s only 12 kg(26.5lb) . No heavy carrying!
• SAFETY UPGRADE: VRD, over current, over voltage, over current, over-load, overheating protection function, when the mentioned problems occoured, the alarm lamp on the front panel will be on and the output current will be cut off. It can self-protect and prolong the using life.
• WARM SERVICE & NO-HASSLE WARRANTY: Every welder machine is inspected rigorously in harsh simulated environments prior to delivery, all in accordance with our high standards. If you have any queries, our customer service team is here for you – they'll provide you with helpful advice and how-to's to get the best out of your ARCCAPTAIN model.

Technical Parameters

The ARCCAPTAIN TIG200P AC/DC Pulse Tig Aluminum Welder offers excellent welding performance and versatility when working with aluminum. Thanks to its AC/DC capabilities, you'll have access to adjustable pulse characteristics and a wide range of welding modes. This creates an ideal environment for welding aluminum, making it an ideal choice for those working with this metal.

Project Name	Unit	Value
Power voltage	VAC	AC230V±15%
Input frequency	Hz	50
Rated input current	A	33@TIG 35@MMA
Capacity of power supply	KVA	6.0@TIG 7.5@MMA
Output current range (TIG)	A	10~200 (230v)
Output current range (MMA)	A	10~160(230v)
Arc force range	A	0~40
Hot start current range	A	0~80
No-load voltage	V	60
Rated working voltage	V	18@TIG 26.4@MMA
AC output frequency	Hz	20~250
AC balance	%	20~60
Background level	A	10~200
Pulse frequency	Hz	0.5~200 (DC)   0.5~25(AC)
Pulse duty factor	%	5~95
Pre-flow time	S	0~5
Post-flow time	S	0~15
Rising time	S	0~15
Fall time	S	0~15
Remote control	-	Yes
Arc start mode	-	HF arc starter
Efficiency (%)	%	80
Duty cycle (%)	%	TIG: 200@25% - MMA: 160@25%
Power factor	-	0.70
Type of cooling	-	Air cooled
Working temperature range	°C	—10~+40
Storage temperature range	°C	—25~+55
Protection class	-	IP21S
Insulation class	-	B
